Prepare Your Truck's Electrical System Like a Pro for Winter

When winter hits Southern California—yes, even mild winter—it still brings cold snaps, moisture, and conditions that can throw your truck’s electrical system for a loop. If you’re operating a heavy-duty vehicle around Fontana, where chilly mountain passes and wet roads meet desert mornings, you can't afford to roll the dice on a weak electrical setup.

Why Winter Wreaks Havoc on Truck Electrical Systems

Ever notice how electronics don’t love the cold? That’s because low temperatures slow chemical reactions—especially in batteries—and increase resistance in wiring. Plus, road salt, rain, and grime create a perfect storm for corrosion.

Moisture seeps into connectors, battery terminals, and worn insulation. Cold thickens fluids and saps battery power. The result? Hard starts, flickering lights, sensor issues, and alternators working overtime.

Step 1: Battery Health – Your First Line of Defense

Let’s start with the beating heart of your electrical system: the battery.

• Test battery voltage and cold cranking amps (CCA). A battery might show 12.6 volts at rest but still fail under load. If your CCA is below spec, replace it before winter.


• Inspect terminals for corrosion. A white, crusty buildup? That’s oxidized lead or acid residue killing your connection. Clean it off with a wire brush and apply dielectric grease.


• Check for swelling or leaks. Cold weather and overcharging can cause deformation. A swollen battery is a ticking time bomb—replace it.

Remember, batteries in heavy-duty trucks do a lot more than just start the engine. They also power glow plugs, sensors, and control modules, especially on cold mornings.

Step 2: Alternator – Keep the Juice Flowing

Your alternator isn’t just a battery babysitter—it’s your powerhouse while the engine runs.

• Check the output voltage. A properly functioning alternator should deliver between 13.5–14.8 volts.


• Inspect the serpentine belt. Cracks or fraying? Replace it. No belt, no charging.


• Listen for noise. A whining or grinding sound could mean failing bearings or a worn pulley.

A weak alternator won’t keep up with winter loads—heater fans, headlights, DEF systems, and more. And if it fails, your battery will drain fast and leave you stranded.

Step 3: Inspect & Seal All Electrical Connections

Winter moisture is ruthless when it gets into wiring. The solution? Seal it tight.

• Check harnesses for cracked or brittle insulation.


• Look at connectors and plugs—especially those near the firewall, headlights, and trailer hookups.


• Use dielectric grease on all vulnerable electrical terminals to resist moisture intrusion.


• Install weatherproof heat-shrink tubing on repaired or exposed wire sections.

Pro tip: Pay special attention to connectors near road-level, like ABS sensors and brake lights. Those suckers love to corrode in slushy road grime.

Step 4: Don't Sleep on the Starter Motor

You know that sluggish “Rrr-rrr” sound when a starter’s on its last legs? Cold weather makes it worse.

• Check the draw amperage. High amp draw combined with slow crank means the starter is laboring and likely nearing failure.


• Inspect wiring to the starter for corrosion, loose terminals, or heat damage.


• Clean ground connections. Bad grounds are notorious for creating phantom electrical gremlins.

Your starter motor is critical to keeping the crankshaft spinning in cold weather so combustion can take over. If it lags, you could miss a delivery window—or worse, break down in subfreezing temps.

Step 5: Test the Glow Plug System

If you're running a diesel engine (and let’s face it, you are), the glow plugs are what help start the engine when it’s cold out.

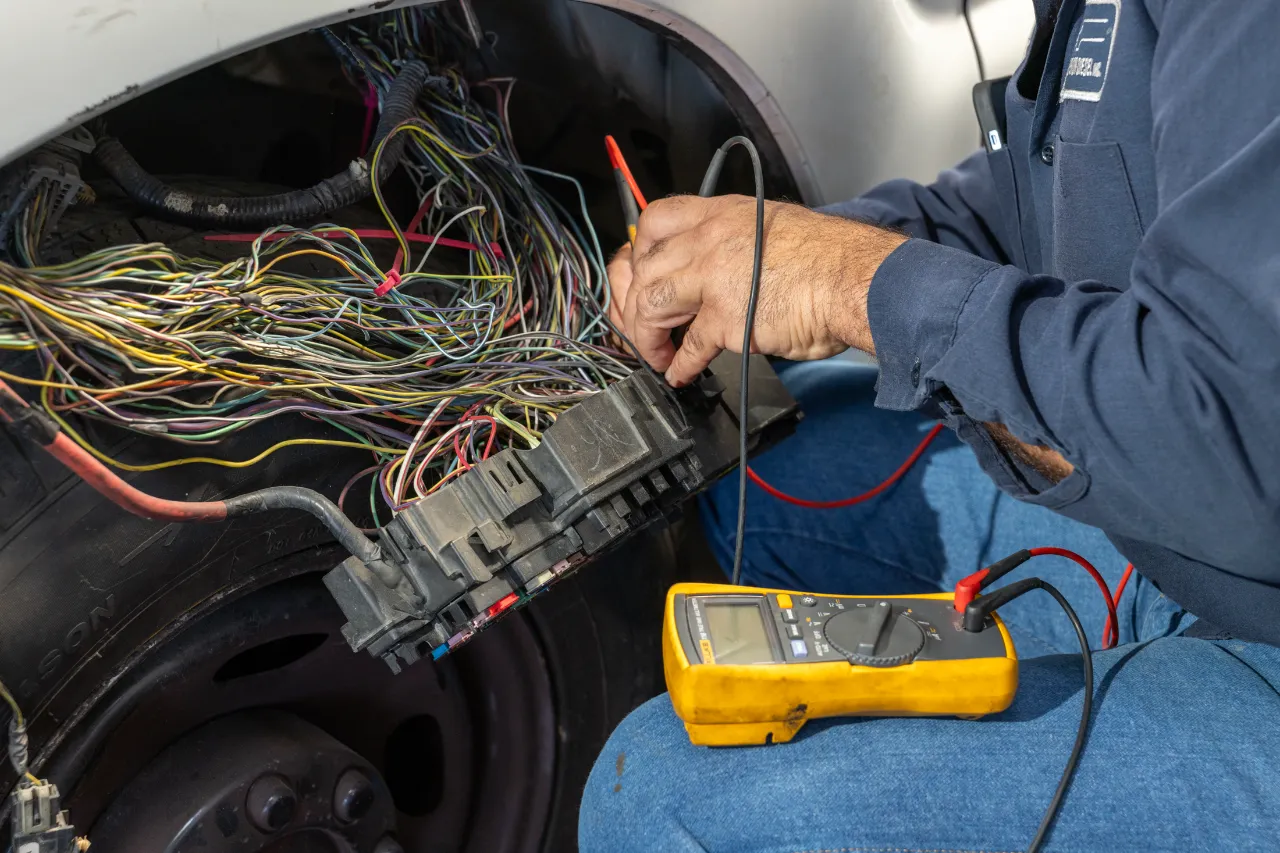

• Test each glow plug for resistance using a multimeter.


• Check the glow plug relay or module. A faulty relay can prevent the system from activating altogether.


• Watch for white smoke on startup. That often means unburnt diesel, which can indicate a glow plug issue.

Glow plugs are key to warming the air in the combustion chamber, which is vital when the engine block is ice cold.

Step 6: Lights & Safety Systems – Don’t Neglect Visibility

Foggy mornings and early sunsets mean your lights work overtime.

• Inspect headlamps, brake lights, and turn signals. Replace any dim or flickering bulbs.


• Check trailer plug connections for corrosion.


• Upgrade to LEDs if your system can support them—they’re brighter, more efficient, and last longer.

Also ensure that your ABS system, sensors, and camera wiring (if applicable) are functioning properly. These are your best friends when traction is low and visibility is worse.

Step 7: Preventive Maintenance = Peace of Mind

Even if everything looks fine, winter is not the time to gamble.

• Schedule a full electrical inspection before the coldest weather hits.


• Replace any component that’s borderline.


• Keep spare fuses and relays in your cab—just in case.

When you’re rolling through Fontana, into the Cajon Pass, or over to Nevada with a fully loaded trailer, winter electrical failures are more than inconvenient—they’re dangerous.

Conclusion: Control What You Can Before Winter Takes Over

The truth is, winter will test your truck’s limits. But by staying ahead of battery, alternator, starter, and wiring issues, you keep your rig moving when others are sidelined.

Don’t wait for a roadside breakdown to teach you what you should’ve inspected in the shop.
